A working 802.11 wireless network. Kodak recommends that you use a wireless access point/router that uses Dynamic Host Configuration Protocol (DHCP). To determine whether your wireless router supports Wi-Fi Protected Setup (WPS). The Kodak Verite is a unique inkjet printer. When paired with Kodak Verite 5 ink cartridges, you can lower ink cost by up to 50%. On top of that, the Kodak printer also offers advanced wireless printing capabilities that improve convenience and efficiency.

Do you have a Kodak Verite 55 Printer model? Is this model brand new? Here is the explanation for Kodak Verite 55 Plus driver and setup

Software or driver being the preliminary requisite, it’s important to choose the appropriate method. You will receive a prompt to install matching software as you execute Kodak Verite 55 plus driver and setup

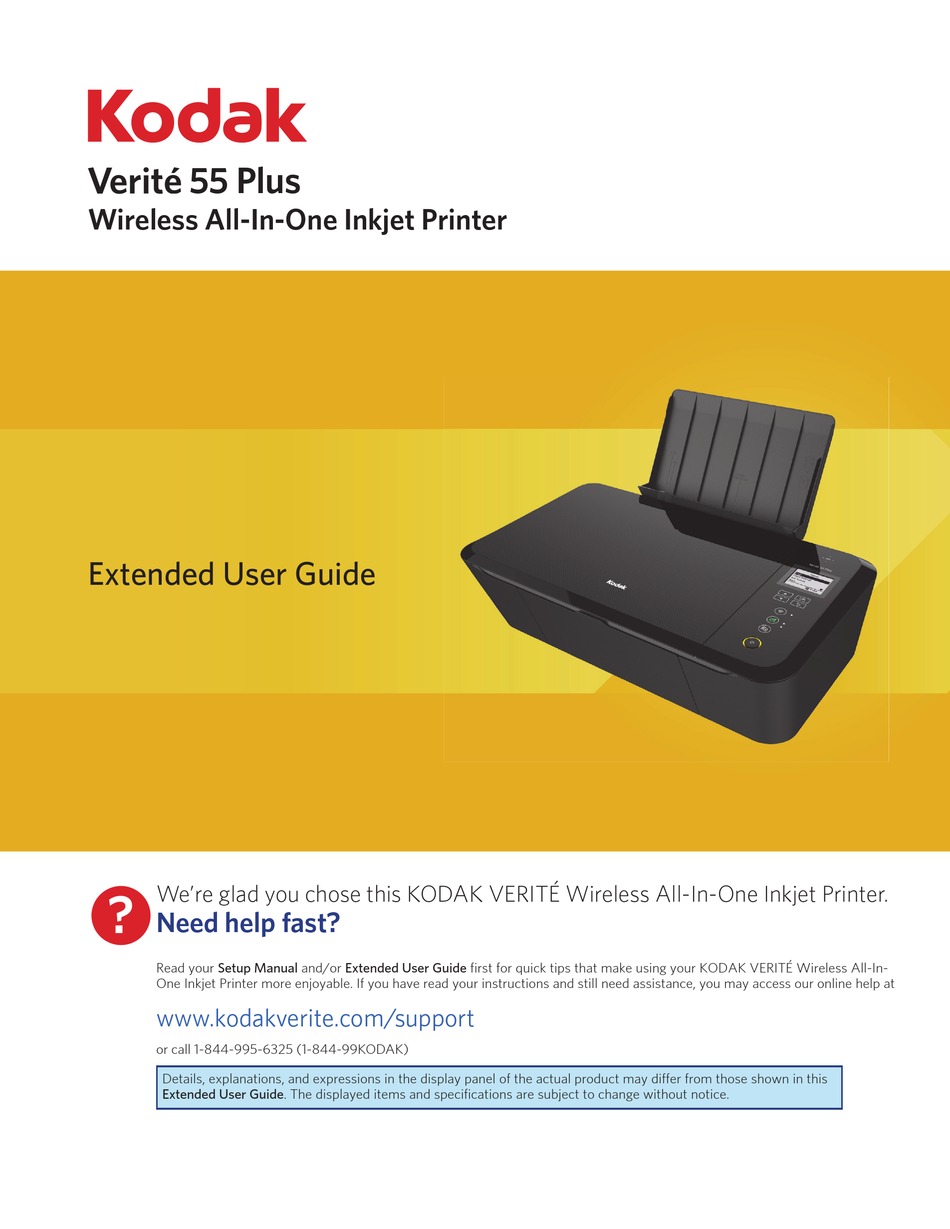

Kodak Verite 55 Plus Driver and Setup Guidelines

If Your model is brand new

  • Unpack the printer – Take out the protective tapes that cover your device
  • Insert the power, USB and Ethernet cable to the appropriate slots

Cartridge Insertion

  • Open the cartridge access door
  • Now lift the Ink door
  • Then, begin your search to find the slot for color and black cartridge.
  • Hold the cartridge firmly and press it hard
  • Make sure you do not touch the electrical contacts
  • The last and final step is to close the cartridge access door

Load the paper into THE TRAY

  • Select good quality papers to use with Kodak Verite 55 model.
  • Most often users opt for Kodak photopaper, Kodak professional Ektatherm print kit, Kodak Ultra Premium Photo paper and much more
  • Place the paper properly on your Input tray

Want to know the Initial Setup Steps?

Kodak Verite 55 initial setup steps include

  • Language selection – Select the appropriate settings from the display panel to choose the required language that you prefer
  • Cartridge alignment – Use the cartridge setup settings visible on your Menu display for alignment.

Wait for the message when the alignment process complete

Internet connection

Network
  • It’s the same display panel of Kodak Verite 55 printer where you can choose the network settings
  • Before you begin to execute, ensure that the router access point is not that far from your Printer
  • If the manual setup is compatible, select the appropriate connection type to enter “wireless network name and password

For users who prefer WPS connection

Users opt for WPS connection method and settings are easy to execute

  • Click on the WPS button on your router and wait until the settings are active

How to change the wireless connection type?

  • To change wireless connection type, navigate to Start option > All Programs > Kodak Verite 50
  • Now choose the option, wireless setup utility
  • Then start your search to find the wireless setup assistant for Mac
  • Finally proceed with the onscreen instructions that appear on your screen to change wireless network connection type

Let us begin Kodak Verite 55 plus driver update process

Kodak Verite 55 plus driver and setup is easy, if you follow the mentioned steps one by one

  • From your mobile device, suggest you to open a new web browser
  • Now visit the Kodak Verite 55 plus driver download webpage
  • Select the section, PC Drivers, Firmware and software
  • Wait for the software search results
  • Make your selection and click on the download tab
  • The very next step is to extract the software setup file to the required folder
  • Carry on with the onscreen guide to complete the process
  • Do not miss any of the driver installation steps

How to overcome Kodak Verite 55 plus driver and setup errors?

  • Validate and verify the Kodak Verite 55 plus driver and setup steps
  • Use a good speed internet connection
  • Device restart or reset can also help
  • Scan your device using the existing scan tools and check if you can stay apart from the error messages
  • Replace your device with a new one and start printing again
  • Download and refer the Kodak Verite 55 plus driver and setup manual for more updates

Start printing and if printing from mobile device is your choice, visit the appropriate website portal to download the app

Besides you can opt for cloud printing services such as AirPrint or ePrint. Connect your iOS device and Printer to same network to proceed

Driver

If you are new to Kodak Verite 55 model and would like to buy, suggest you to check the reviews to know the features and specifications

Is it difficult to execute the setup on your own? Reach out to our customer support executives who can guide you any time at https://www.kodakveritecom.com/ or call us @ +1-844-211-3270.


Table of Contents > Setting Up Your Printer > Configuring network settingsCards

3 Setting Up Your Printer

You can connect your printer to a wired (Ethernet) network or to a wireless (Wi-Fi) network. You may refer to the 'Start Here' booklet that came with your printer, or review the following sections as needed.

Networking resources

This section only covers how to set up your printer with your existing network. It presumes you have a working understanding on how your network is configured. Additional resources for related topics, information, and network troubleshooting are available at www.kodak.com/go/inkjetnetworking.

If you are unsure of how your network is configured, please contact your network administrator or your internet service provider for assistance.

Configuring an Ethernet network connection

You will need the following items to connect the printer to a wired (Ethernet) network:

  • A functional Ethernet network that includes a router, switch, or hub with an Ethernet port

  • A CAT-5 (or higher) Ethernet cable

Ethernet setup

Kodak Network & Wireless Cards Driver Download For Windows
  1. Plug one end of the Ethernet cable into the Ethernet port located on the back of the printer and the other end into an available port on your Ethernet router or hub.

  2. Turn on the printer, if necessary.

  3. From the control panel, press Menu.

  4. Press until Network Settings is selected.

  5. Press OK.

  6. Verify the connection.

Configuring a wireless network connection

You can connect your printer to a 802.11 wireless (Wi-Fi) network from the printer control panel.

The wireless (Wi-Fi) network status light on your printer has the following conditions:

LED StatusDescription

Fully lit

When lit, signals that a wireless (Wi-Fi) network connection has authenticated to the router, but your connection may not be active. You can verify the connection through the Network Settings menu.

Blinking

Blinks when

  • searching for an available Wi-Fi network within range

  • existing signal is too weak to transmit

The LED has a repetitive cycle of blinking, then resting for 15 seconds, followed by blinking again. The Wi-Fi radio will continue to attempt connection to the network until a connection is established.

What you need to know before you connect

Kodak Network & Wireless Cards Driver Download For Windows

To connect your printer to a wireless network, you will need the following:

  • A laptop or desktop computer equipped with a network interface card or wireless networking support, and the Kodak software installed

  • A working 802.11 wireless network. Kodak recommends that you use a wireless access point/router that uses Dynamic Host Configuration Protocol (DHCP)

  • Internet access (preferably Broadband access such as cable or DSL)

  • Your network name (SSID). You can obtain your SSID from the wireless router or the access point using the router's embedded web server. See the manufacturer's documentation provided with your wireless system for more information.

  • Your WEP key or WPA passphrase. You can obtain your WEP Key or WPA passphrase from the wireless router or the access point using the router's embedded web server

  • Your network security string, if applicable

  • Disable your firewall or accept the firewall prompts to allow installation

If you are unsure about any of the items listed above, please contact your network administrator or your internet provider for assistance.

Configuring basic wireless (Wi-Fi) settings

Kodak Network & Wireless Cards Driver Download For Windows 8

NOTE:You will need to know the network name (SSID) of the Wi-Fi network, and its security string to connect your printer to the network successfully. Contact your Internet provider or the person who helped you configure your network to assist you.

CAUTION:
If there is an Ethernet cable plugged in to the Ethernet port on the back of the printer, unplug it before starting this task.
  1. From the control panel, press Menu.

  2. Press until Network Settings is selected, and then press OK.

  3. If the message states Turn Wi-Fi RadioOn, press OK. If the message states Turn Wi-Fi RadioOff, move to the next step.

  4. As needed, press , , or to view or configure an item, and then press OK.

Network Settings options

If the printer has not been configured to connect to the Wi-Fi network or the printer Wi-Fi radio is turned off, the LCD screen displays the options below:

Menu OptionsSettings / Action

Wi-Fi Setup Wizard

Press OK to start the Wizard.

Turn Wi-Fi Radio On / Off

Press OK to toggle between the Wi-Fi radio on or off states.

View Network Configuration

Press OK to view the configuration on the LCD screen.

Print Network Configuration

Press OK to print the network configuration.

Manual IP Address

Press OK to display the Manual IP Address menu.

Wi-Fi setup wizard

Review the procedures below and use the one that suits your network setup.

Connecting to a listed network

  1. Complete Steps 1 and 2 of Configuring basic wireless (Wi-Fi) settings.

  2. Wi-Fi Setup Wizard is the first option; press OK to select it.

    NOTE:The Wi-Fi radio is turned on automatically when Wi-Fi Setup Wizard is selected.

  3. The printer searches for available Wi-Fi networks detected, then displays the list in alphabetical order on the LCD screen. The illustration below shows an example list. The row containing each <Network name> listed also shows the strength of the signal (shown below as xx%) as a percentage between 0 and 100, where 100 is the highest possible strength.

    • For best performance the signal strength should be at least 50%.

    • If more Wi-Fi networks are within range than can be shown on the LCD screen, the display includes the (page down) symbol and/or the (page up) symbol on the LCD screen. As appropriate, press or on the control panel until you locate the network you want to use.

      As appropriate, press or on the control panel until you locate the network you want to use.

    The last two options displayed are Unlisted network and Rescan for wireless networks.


    NOTE:In your setup, instead of <Network name> as shown in the illustration above, the LCD will show the actual network name (SSID), without the brackets, and the signal strength, displayed as a percentage, of each available Wi-Fi network within range.

  4. With the desired network selected, press OK. You may need network identification information, such as a security string, in order to authenticate your connection.

    NOTE:You will need to know the network name (SSID) of the Wi-Fi network and its security string to connect your printer to the network successfully. Contact your Internet provider or the person who helped you configure your network to assist you.

  5. If you are looking for a Wi-Fi network that does not broadcast its SSID, see Connecting to an unlisted network.

    NOTE:If your printer was last connected to an available network on the list, the network settings are saved and the printer will automatically attempt to reconnect you to that network.

  6. If the network requires the entry of a security string, the keyboard will be shown on the LCD. Press , , or to select a key. Press OK.

  7. Enter the security string. The correct upper and lower case characters and numbers are required.

    NOTE:To erase any letters or numbers entered in error, select <BKSP > (backspace) and press OK.

    Key/Passphrase/ Security StringDescription

    WEP key

    5 or 13 ASCI characters; case-insensitiveor10 or 26 Hexidecimal digits; case-insensitive

    WPA/WPA2 phrase

    8-63 printable ASCI characters; case-sensitive

  8. After completing your entry, select the DONE key, and then press OK.

    LED StatusDescription

    Fully lit

    When lit, signals that a wireless (Wi-Fi) network connection has authenticated to the router, but your connection may not be active. You can verify the connection through the Network Settings menu.

    Blinking

    Blinks when

    • searching for an available Wi-Fi network within range

    • existing signal is too weak to transmit

    The LED has a repetitive cycle of blinking, then resting for 15 seconds, followed by blinking again. The Wi-Fi radio will continue to attempt connection to the network until a connection is established.

The LED will be continuously lit when you are connected to a wireless network. This does not guarantee you are connected. You must verify that you are connected. See Verifying network configuration.

Connecting to an unlisted network

  1. Wi-Fi Setup Wizard is the first option; press OK to select it.

  2. If you network does not appear in the list and is configured to not broadcast its SSID, select Unlisted Network and press OK.

  3. Follow the prompts to enter the network name using the keyboard visible on the LCD screen. Press , , or to select a key. Enter the alphanumeric string accurately, using the same upper and lower case letters as your SSID. After completing your entry, select the DONE key, and then press OK.

  4. Select WEP or WPA/WPA2 as required for your network's security setup, and then press OK.

  5. Enter the security information required using the LCD screen keyboard.

    • Press , , or to select a key. Select <BKSP> to erase any incorrect characters. Then select DONE and press OK.

  6. After the confirmation message appears on the LCD screen, press OK to display the Network Settings menu.

Scanning for wireless networks

If you don't see your network in a list or want to change your network:

  1. Select Rescan for wireless networks.

  2. Press OK.

Setting up an IP address

Kodak Network & Wireless Cards Driver Download For Windows 10

If you have discovered that you are connected to the access point but you are not connected to the network, you may need to set up your IP address on the printer.

  1. From the Network Settings menu, select Manual IP Address and press OK.

  2. Select one of the options displayed:

    • Dynamic (DHCP)

    • Automatic (Private)

    • Manual (Static)

  3. Then press OK to continue.

  4. Depending on the IP address type specified, you may be prompted to enter an IP address, a Subnet Mask, a Gateway Address; and a DNS Server address. Press OK after making each entry. See your network provider for more information.

    All address entries are made in the following format: 000.000.000.000. Any address or subnet mask that has only 2 characters between stops shall have a leading zero entered in front of that number. For example:

Address or Subnet Mask FormatPrinter Entry Format

149.89.138.149

149.089.138.149

149.2.40.149

149.002.040.149

To obtain the IP Address on a Windows operating system:

You must use a computer on your network.

  1. Select Start > Run.

  2. Type cmd.

  3. Type ipconfig and then press Enter. If configured, IP Address, Subnet Mask and Gateway Address (Default Gateway) are shown.

Tip: Your Gateway Address is usually the router address.

To obtain the IP Address on a Macintosh operating system:

You must use a computer on your network.

  1. Open System Preferences.

  2. Under Internet and Network, click Network. Select the Wireless Network. Your IP address will be shown.

Verifying network configuration

You can verify that you are connected to a network from your printer menu.

  1. Press until Network Settings is selected, and then press OK.

  2. Press until View Network Configuration is selected, and then press OK. When you select this menu item, the printer displays the configuration settings for both Ethernet and Wi-Fi networks on the LCD screen.

  3. Press until the second page appears.

  4. Look for the text Connected Network SSID. Your network name should be listed.

Printing network configuration

Kodak

When you select this option, a print of your current network configuration settings is generated. Settings with no values will be displayed as zeros.

  1. Press until Network Settings is selected, and then press OK.

  2. Press until Print Network Configuration is selected, and then press OK.

Installing your printer on additional computers on the same network

For Windows

To install the printer on another computer in your network, use the following steps.

  1. Install the software that came with your printer on the target computer.

  2. Run the KODAK Printer Network Setup Utility. This is located at Start > All Programs > Kodak >Kodak Printer Network Setup Utility.

  3. Select Connect via Network - Wireless / Wi-Fi then click Next to proceed. The printer should be detected and driver installations begin. If you have more than one printer connected to your network, select the printer, then click Next.

  4. After the driver installation completes, click Next to proceed.

The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.

For Macintosh

To install the printer on another computer in your network, use the following steps:

  1. Install the software that came with your printer on the target computer.

  2. Click System Preferences.

  3. Click Print & Fax.

  4. Click the + sign to add the printer.

  5. Select the KODAK ESP 7 All-in-One Printer from the list of available printer(s).

The printer will be named KODAK ESP 7-XXXX, where XXXX is a number unique to your printer.


Previous

Kodak Network & Wireless Cards Driver Download For Windows 8.1

Next
